Arcade Machine Monitor and Touch Screen Replacement Guide

For arcade operators, distributors, and repair buyers, replacing an arcade machine monitor is not just about finding the same screen size. A monitor may power on, but still show the wrong image ratio, fail to fit the cabinet, lose touch response, or require a different control board.

That is why arcade monitor replacement should be treated as a matching job. The LCD screen, touch glass, signal interface, control board, wiring, power supply, mounting structure, and game board output all need to work together.

Start With the Machine, Not the Screen

Many buyers first ask for a 19-inch, 24-inch, 25-inch, 27-inch, or 32-inch screen. Size matters, but it is only the first filter.

Before ordering, confirm the machine model, cabinet space, screen ratio, resolution, connector type, voltage, and whether the machine uses touch function. If the old screen label is still visible, send a clear photo to the supplier. It usually saves more time than describing the problem in words.

For venue owners, correct matching reduces downtime. For distributors, it reduces repeated after-sales questions. For repair buyers, it helps avoid buying a screen that cannot be installed or connected.

Screen Size, Ratio, and Mounting Must Match

An arcade LCD monitor must match the cabinet structure. Two screens with the same diagonal size may still have different width, height, thickness, bezel design, and mounting position.

Aspect ratio is also important. If the original cabinet was designed for 4:3 but the replacement screen is 16:9, the image may stretch, crop, or leave empty space. For fish game machines, shooting games, racing games, and touch screen arcade machines, wrong display ratio can affect player experience directly.

Mounting should not be guessed. VESA’s FDMI overview explains that the standard defines mounting interface standards for flat displays. You can refer to the VESA Flat Display Mounting Interface overview. Arcade cabinets may not always use standard consumer mounts, so buyers should still confirm bracket holes and cabinet depth before shipment.

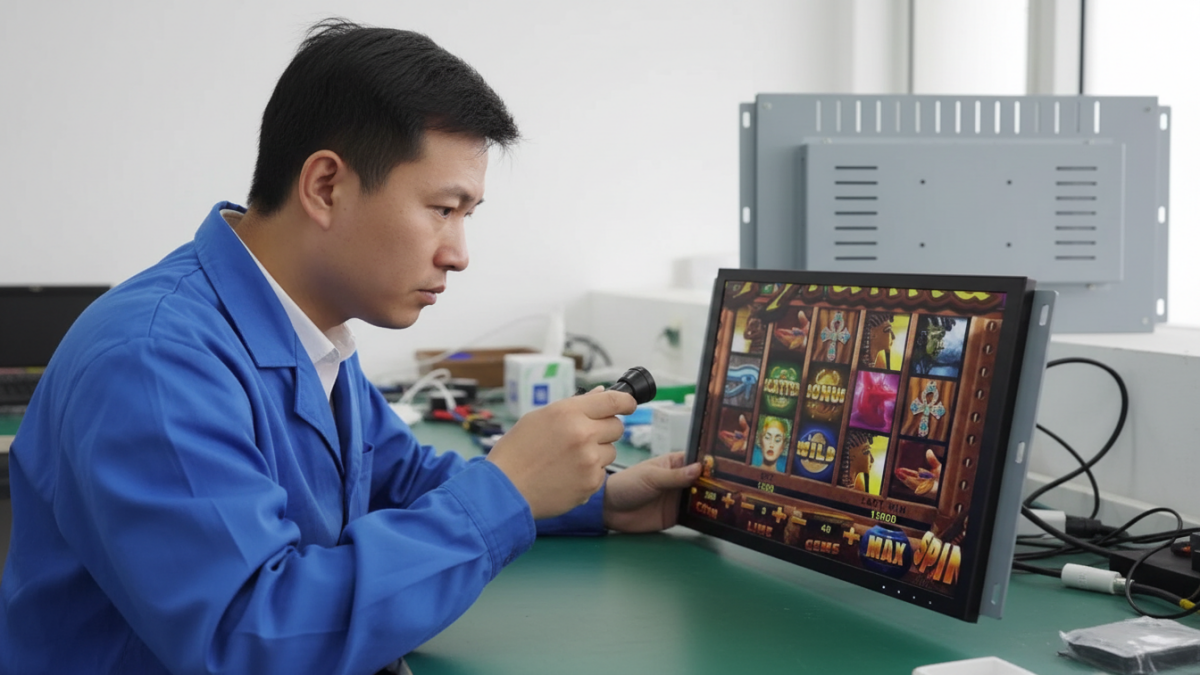

Interface and Control Board Are the Real Key

The screen is only one part of the display system. Buyers should confirm whether the original machine outputs HDMI, VGA, LVDS, or another signal type. If the replacement LCD panel needs a control board, that board must match both the panel and the game board output.

HDMI is common in modern display equipment. HDMI.org states that almost 14 billion HDMI-enabled devices have shipped since the first HDMI specification was released in 2002. You can review HDMI.org’s page on HDMI specifications and programs.

For arcade machines, the practical point is simple: do not assume one monitor fits every board. If the signal type, resolution, or control board is wrong, the screen may show no signal, unstable image, wrong color, or stretched display.

For related signal issues, our fish game PCB troubleshooting guide explains how boards, wiring, and signal problems can affect machine operation.

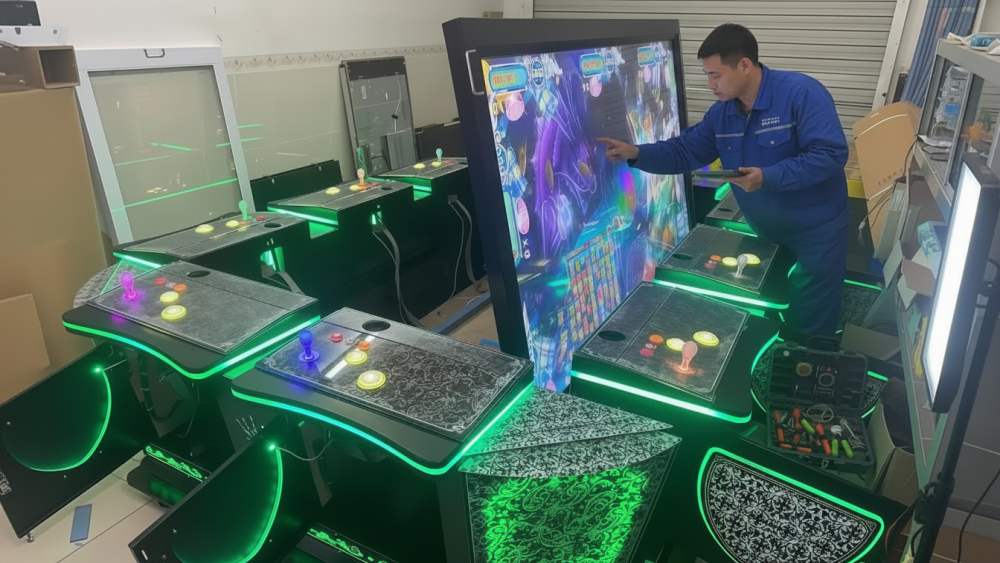

Touch Screen Arcade Machines Need More Checks

If the machine uses a touch screen, buyers should check more than the image display. A touch screen arcade machine may include the LCD panel, touch glass, touch controller, cable, and software calibration.

If one part does not match, the screen may display normally but touch may not respond, drift, or register the wrong position. Before ordering, confirm the touch type, controller connector, glass size, cable position, software support, and whether calibration is needed.

Power, Wiring, and Safety Should Be Checked

Buyers should also confirm voltage, power connector, grounding, cable length, and internal wiring route. A screen that works on the test bench may still be difficult to install if the cable position or connector direction does not match the cabinet.

For electrical parts, safety requirements should not be ignored. UL 62368-1 covers safety requirements for audio/video and information technology equipment within its scope. You can review the UL page on UL 62368-1 safety requirements.

What Repair Buyers Should Send Before Ordering

To reduce wrong shipments, send the supplier the old screen label, cabinet photo, connector photo, control board photo, power input, touch controller photo, and a short video showing the fault.

This helps confirm whether the problem is the LCD panel, control board, touch glass, wiring, power supply, or game board signal. Our arcade machine parts buying guide gives a wider checklist for replacement parts used in commercial game rooms.

Industry Insight

For venue owners, the best replacement monitor is not always the cheapest one. It is the one that can be installed quickly, display correctly, and bring the machine back into operation with minimum downtime.

For distributors, stable monitor and touch screen supply matters because customers often need the same part again later. Changing screen models too often can create wiring changes, installation problems, and after-sales pressure.

Experienced buyers do not only ask for screen size. They ask whether the supplier can confirm interface matching, control board support, touch function, mounting position, power connection, and pre-shipment testing.

Final Thoughts

Choosing an arcade machine monitor or touch screen replacement should be handled as a technical matching process. Buyers should check size, ratio, resolution, interface, control board, voltage, mounting, wiring, and touch compatibility before ordering.

For operators, distributors, and repair buyers, correct matching reduces downtime and avoids repeated troubleshooting. A reliable supplier should help confirm the full system, not only sell a screen.
