Commercial Air Hockey Table Testing Before Shipment

A commercial air hockey table is not ready to ship just because the blower starts and the scoreboard lights up. The finished machine should prove that the puck moves evenly, both goals score correctly, the payment system starts the intended game, and the cabinet remains stable during normal play.

A short demonstration shows that a machine can switch on. A proper shipment test shows whether the exact production unit is ready for daily commercial operation.

For venue owners, that means fewer installation-day problems. Distributors gain better control over repeat orders, while repair teams receive a useful baseline for the blower, sensors, boards, payment system and wiring.

What the Test Must Confirm

Before packing, the machine should pass five practical checks:

• Even puck movement across the full playfield.
• Reliable scoring from both goals.
• Correct credit, game time and restart settings.
• Stable cabinet, blower, lighting, sound and power.
• Protected packing with accurate package data.

The sequence matters. If the table is not level or one part of the playfield is slow, later gameplay and scoring tests will not represent normal operation.

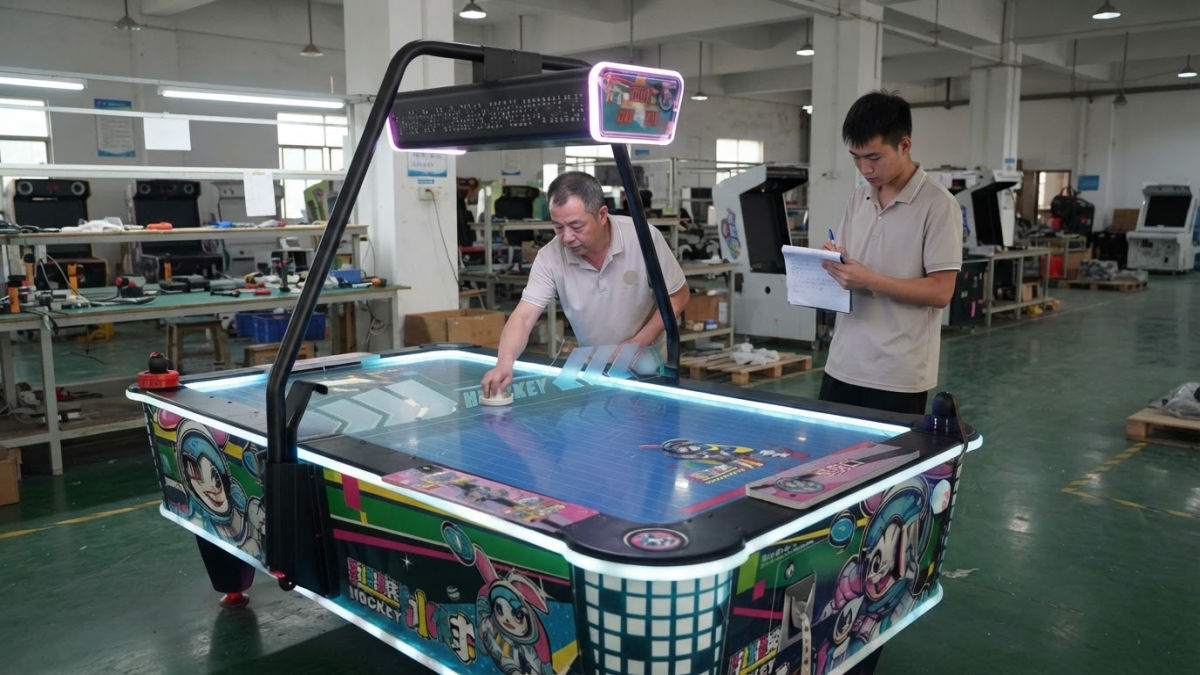

Start With the Playfield

The sound of a running blower does not prove that airflow is even. Air holes may be partly blocked, the table may be slightly tilted, or the puck may slow near one corner.

Test the machine fully assembled on its adjustable feet. Place the puck near the centre before play. Consistent movement toward one side may indicate that the table needs levelling rather than a stronger blower.

Then move the puck through the centre, corners, side rails and both goal areas. Look for slow zones, unwanted drift, vibration or changes in blower sound. The SEGA service manual also notes that dust in the blower intake, air holes and goal areas can affect normal operation.

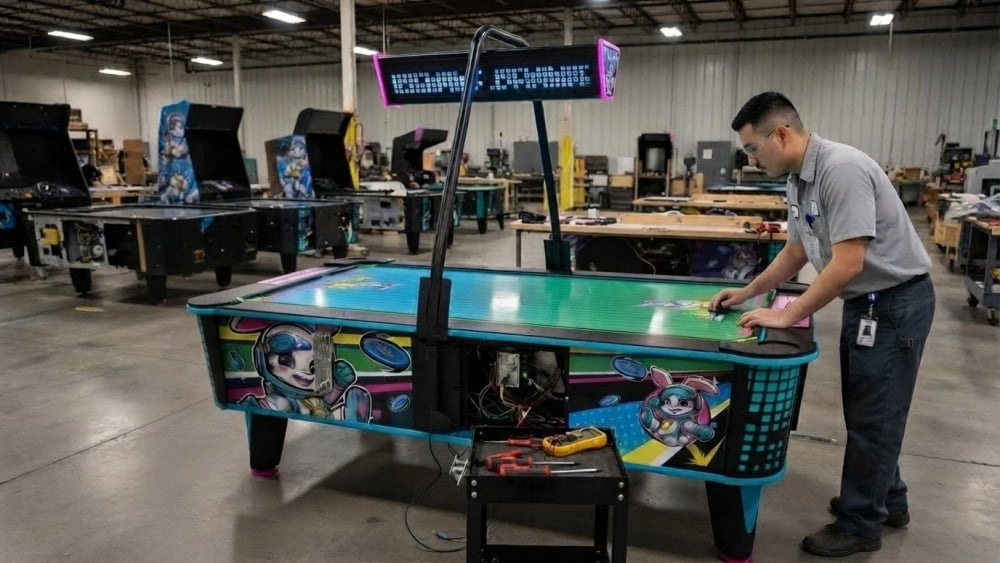

Test Scoring and Payment as One System

One successful goal on each side is only a basic check. Score both goals repeatedly and vary the puck speed and angle. The display should add one point for each valid goal, with no missed or duplicate scores.

Also confirm that the game ends and resets according to the programmed score or time limit. Automatic puck-release and return channels should work without trapping the puck.

The Barron Games manual lists the sensor, solenoid, main PCB, scoreboard and coin mechanism as connected parts of the same system. That is why isolated component checks are not enough.

For a coin-operated air hockey table, each payment must add the correct credit and start the intended game. Card readers and bill acceptors should be tested through the final production wiring. After programming, restart the machine and confirm that the settings remain correct.

Our commercial air hockey table buying guide covers the wider purchasing questions around airflow, cabinet construction, payment and maintenance access.

nal Production Version

The machine shown in the test video should match the version being shipped. A sample fitted with a different blower, PCB or payment board gives the buyer little protection.

Run the complete machine long enough to observe blower stability, scoring, lighting, sound, power-supply temperature and connector security. There is no honest universal test duration for every model; the test method should match the machine’s configuration.

Voltage and frequency must match the destination market. Cabinet stability should also be checked during realistic play, not while the table is untouched. Inspect the legs, level adjusters, frame joints, rails, locks and service doors.

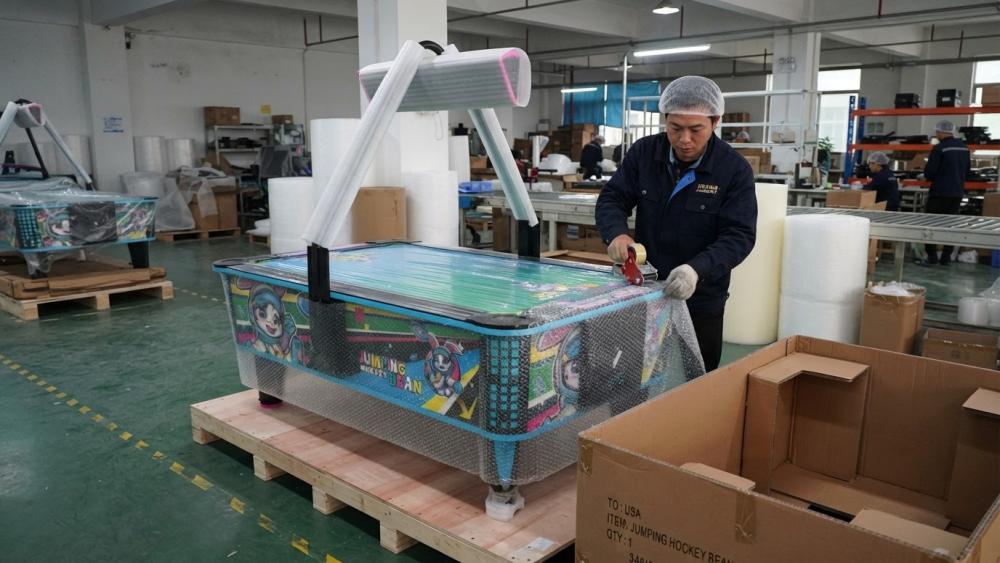

Packing Is Part of the Test

A machine can pass every gameplay check and still arrive with problems if it is dismantled or packed carelessly.

One current Fusen two-player commercial air hockey table measures 135 × 216 × 168 cm when assembled, while its packing size is 226 × 145 × 120 cm. This is why operating dimensions and final packing data must be recorded separately.

Removed connectors should be labelled, fasteners packed together, and the playfield protected from pressure and scratches. Before dispatch, the package count, dimensions, gross weight and assembly instructions should match the shipping documents.

Industry Insight

The most costly air hockey problem is often not a failed part. It is an undocumented difference between the approved machine and the delivered batch.

A small change in sensor position, blower model, PCB version or payment setting may look harmless during production. Across ten or fifty machines, it becomes a recurring after-sales issue.

For distributors, a version-controlled test sheet is more valuable than a polished promotional video. For operators and repair teams, the same record provides a reference when puck speed, scoring or credit input later becomes unstable.

Final Thoughts

A commercial air hockey table should be tested as one complete system before shipment. Confirm the playfield, airflow, scoring, payment, final configuration, cabinet stability and packing. That produces a machine that is easier to install, easier to reorder and easier to repair after it enters service.
