Fish Table Game Machine for Commercial Venues: 6 Checks Before Ordering

A fish table game machine can become the main attraction in a commercial arcade. It can also become one of the most difficult machines to install and support when the specification is chosen from photographs or player count alone.

The cabinet must fit the site, the electronics must match, the payment system must be ready for the local market, and technicians must be able to reach the parts that will eventually need attention.

For venue owners, distributors, and maintenance buyers, the best model is not automatically the largest one. It is the machine the business can operate and support consistently.

1. Choose Capacity for Normal Customer Traffic

A 4-player table and a 10-player table create very different demands on space, wiring, controls, payment inputs, spare parts, and technical support.

Smaller models are easier to place and may suit compact venues or operators testing a new location. Larger tables can create stronger group activity, but they also concentrate more of the venue’s capacity inside one cabinet.

Choose capacity around ordinary trading periods rather than the busiest hour of the week. Several empty player positions still occupy floor space and add components that must be maintained.

Our fish game machine player capacity guide compares 4-, 6-, 8-, and 10-player configurations in more detail.

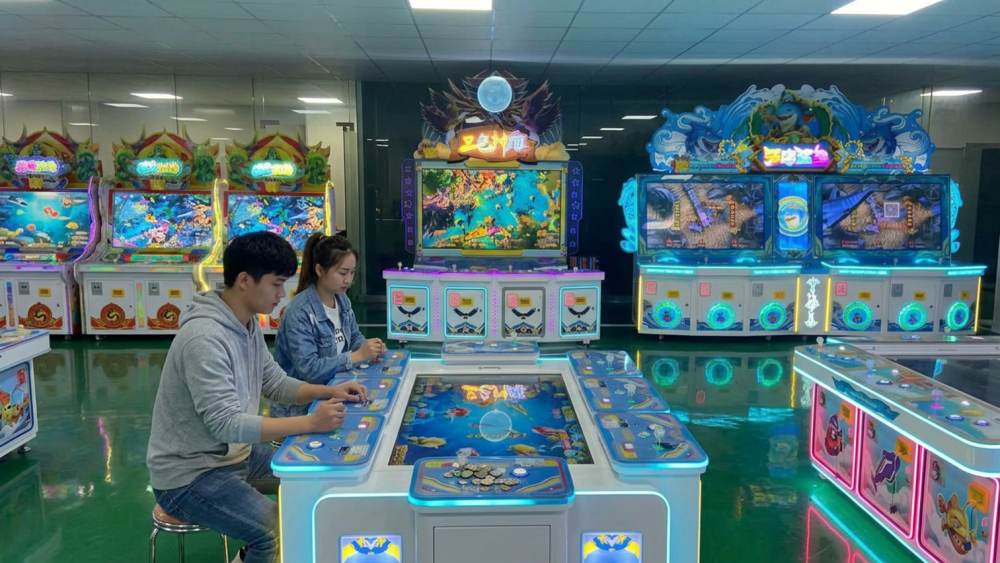

2. Measure the Full Operating Area

The dimensions on a quotation normally describe the cabinet only. They do not include chairs, standing players, people waiting behind them, payment access, cleaning space, or the clearance needed to open a service panel.

A machine may fit between two walls and still be difficult to use because one side faces a passage or a technician cannot reach the power supply without moving the cabinet.

The 2010 ADA Standards for Accessible Design specify a basic clear floor space of 30 by 48 inches, or 760 by 1220 mm. This is not a universal fish-table spacing rule, but it shows why player access must be calculated separately from the cabinet footprint.

Our fish game machine placement guide covers walking flow, screen visibility, payment access, power position, and maintenance clearance.

3. Approve the Complete Machine Configuration

The cabinet, screen, PCB, I/O board, controls, wiring, software, and payment hardware should be approved as one configuration.

Before production, confirm the player count, screen ratio and resolution, PCB model, I/O-board version, button layout, language, difficulty range, credit settings, and software version.

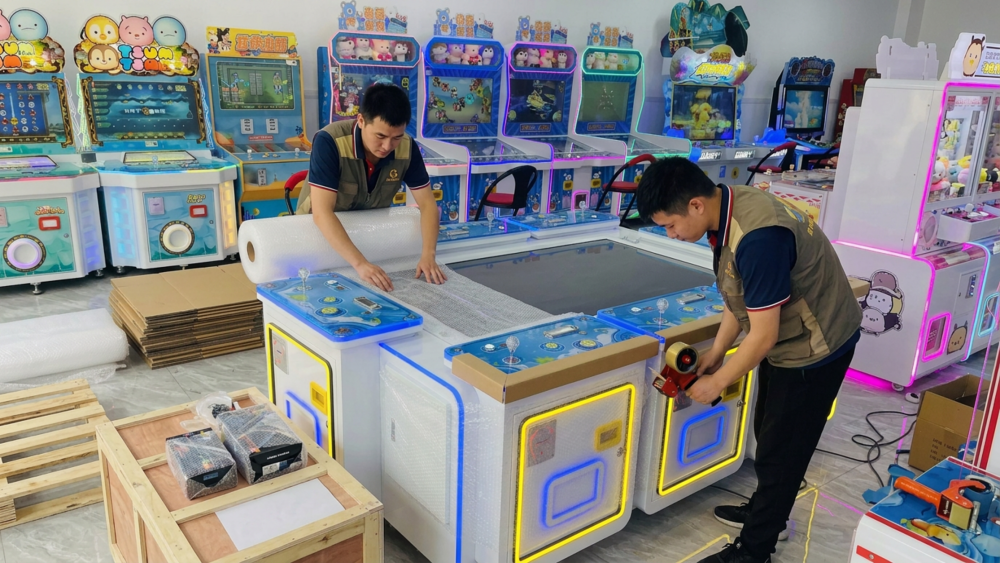

Every player position should be tested separately. Joystick direction, button response, credit input, sound, player numbering, and game control can be correct at one station and wrong at another.

For distributors, configuration records are essential. Two identical-looking cabinets may use different boards, wiring harnesses, or payment interfaces inside.

4. Confirm the Payment System Before Shipment

Payment changes are far easier to manage before the machine leaves the factory.

Confirm whether the venue uses coin acceptors, card readers, bill acceptors, or another local system. The supplier also needs the credit value, pulse signal, wiring interface, number of payment points, and required panel openings.

Leaving these details until installation may require new wiring, an interface board, software adjustment, or metalwork. A small payment change can become an expensive site modification when it is not included in the approved specification.

5. Plan Service Access and Spare Parts

A multiplayer fish table contains several control stations, wiring branches, payment inputs, speakers, lighting circuits, and internal boards. Service access should be checked before the final position is chosen.

Technicians should be able to reach the PCB, power supply, I/O board, display controller, wiring terminals, coin acceptors, buttons, and joysticks without dismantling half the cabinet.

Maintenance buyers should also confirm that matching buttons, joysticks, power supplies, harnesses, I/O boards, and PCB versions remain available. A replacement part is only useful when its connector and configuration match the delivered machine.

6. Check the Delivery Route

A fish table may fit the final floor plan and still be impossible to move through the building.

Measure the loading entrance, corridors, lift doors, stair turns, and final doorway. Confirm whether the cabinet ships assembled or in sections and what lifting equipment or local assembly work will be required.

Voltage, frequency, plug type, grounding, packaging, lifting points, and arrival inspection should also be agreed before shipment. These details are much easier to solve on the order sheet than on the arcade floor.

The IAAPA Entertainment Center Benchmark Report evaluates attraction offerings together with guest behaviour, staffing, revenue generation, and expense management. The practical point for buyers is that equipment selection should support the venue’s full operating plan, not be treated as an isolated cabinet purchase.

Industry Insight

Larger capacity does not automatically create a stronger operation.

When a central screen, PCB, power circuit, or payment interface fails, several player positions may stop together. The cost of poor configuration control therefore increases as the machine becomes larger and more complex.

For operators, the better machine is the one the team can keep running. For distributors, it is the model that can be repeated with the same documented specification. For maintenance buyers, it is the cabinet whose internal system can be identified without guesswork.

Player capacity attracts attention. Configuration control protects the business.

Final Thoughts

Choose a fish table game machine by more than cabinet appearance and player count.

The right model should fit the site, match normal customer traffic, support the local payment system, allow practical maintenance, and arrive with a clearly documented electronic configuration.
