Custom Arcade Cabinet Manufacturing Guide for Commercial Buyers

For commercial buyers, a custom arcade cabinet is not just an outside shell. It decides how the machine looks, how players use it, how technicians repair it, and how stable the machine remains after long daily operation.

For arcade venue owners, distributors, and repair purchasing teams, cabinet design should be confirmed before production starts. Once the cabinet structure, screen position, or internal layout is wrong, fixing it later is usually slower and more expensive than checking it properly at the beginning.

Start With the Real Operating Scene

A cabinet used in a shopping mall game room is not always suitable for a distributor showroom or a high-traffic arcade center. Before ordering, buyers should confirm where the machine will be used, who will play it, how much floor space is available, and how staff will maintain it.

A good arcade machine cabinet should not only look attractive. Players need enough room to stand, sit, or move naturally. Operators need easy access to the coin acceptor, card reader, power switch, PCB, I/O board, wiring, and internal service area. A cabinet that looks good in photos but is difficult to repair will create pressure later.

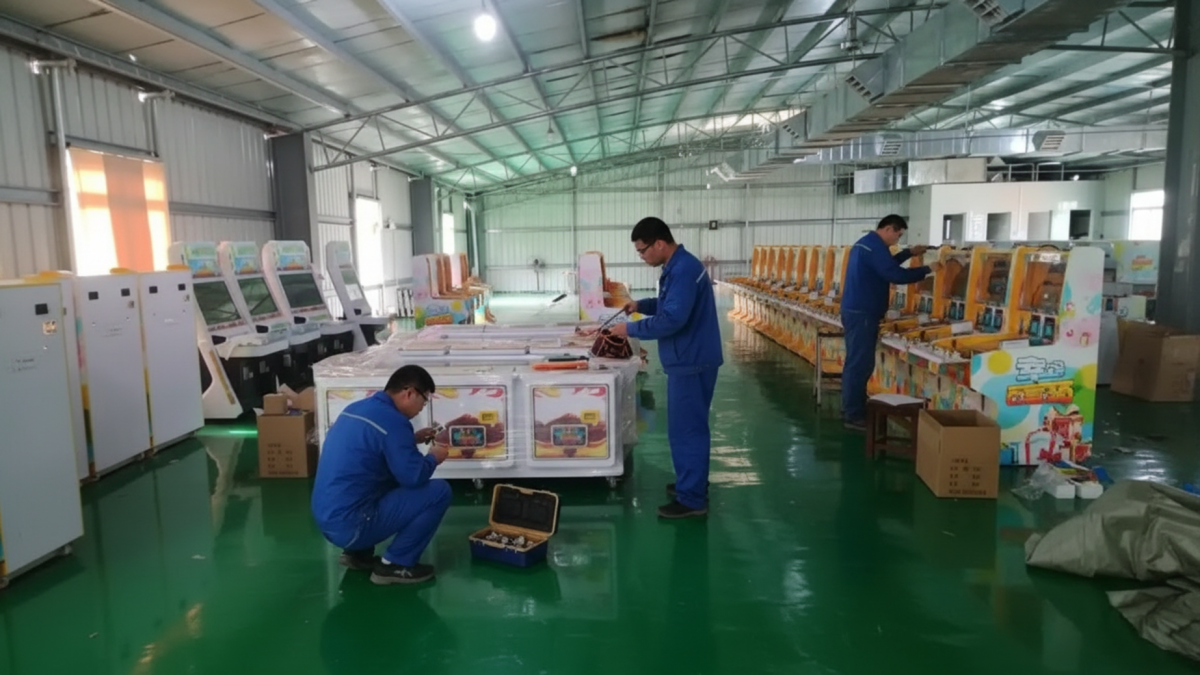

Cabinet Structure Matters More Than Decoration

For commercial arcade machines, cabinet strength is part of product quality. Buyers should check the cabinet material, thickness, internal frame, lock position, door structure, ventilation area, control panel strength, and whether the cabinet can handle repeated daily use.

This is especially important for fish game machines and multi-player arcade cabinets. More player positions mean more buttons, joysticks, monitors, wiring, payment parts, and internal boards. If the cabinet is weak or too crowded inside, maintenance becomes harder and parts may loosen faster during operation.

For batch orders, consistency also matters. ISO explains that ISO 9001 quality management helps organizations deliver consistent products and services while meeting customer and regulatory expectations.

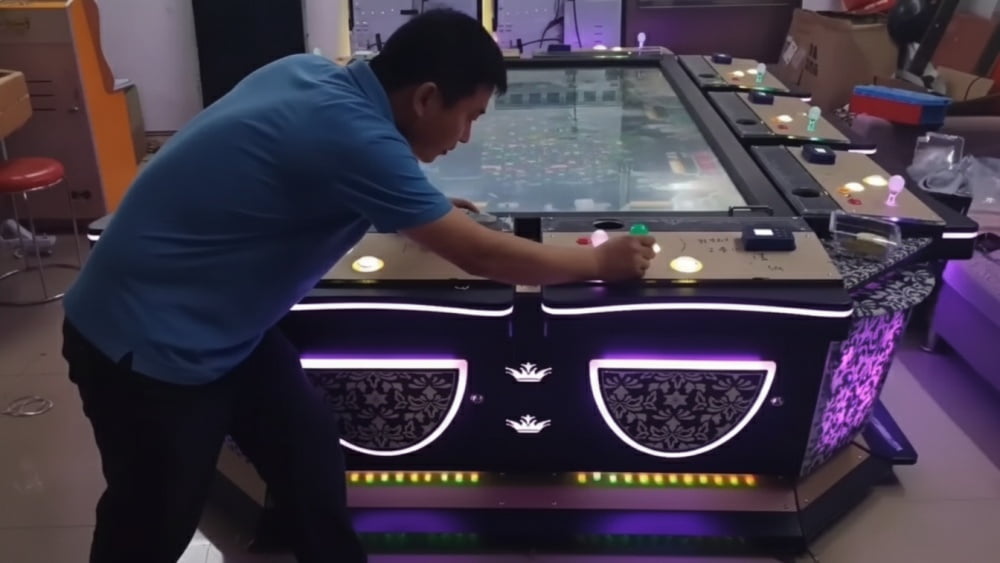

Screen and Control Panel Layout Must Be Checked Together

Screen position is not only an appearance detail. It affects viewing angle, cabinet depth, heat space, wiring route, and service access. Before production, buyers should confirm the screen size, aspect ratio, bracket position, bezel design, and front panel structure.

VESA’s Flat Display Mounting Interface overview defines mounting interface standards for flat displays. You can refer to the VESA FDMI overview. Arcade cabinets may use custom brackets, so buyers should still confirm mounting holes, cabinet depth, and screen service access before production.

The control panel also needs careful checking. Button and joystick spacing should feel natural for each player position. For distributors, layout consistency is important because different spacing across batches can increase customer complaints and spare part confusion.

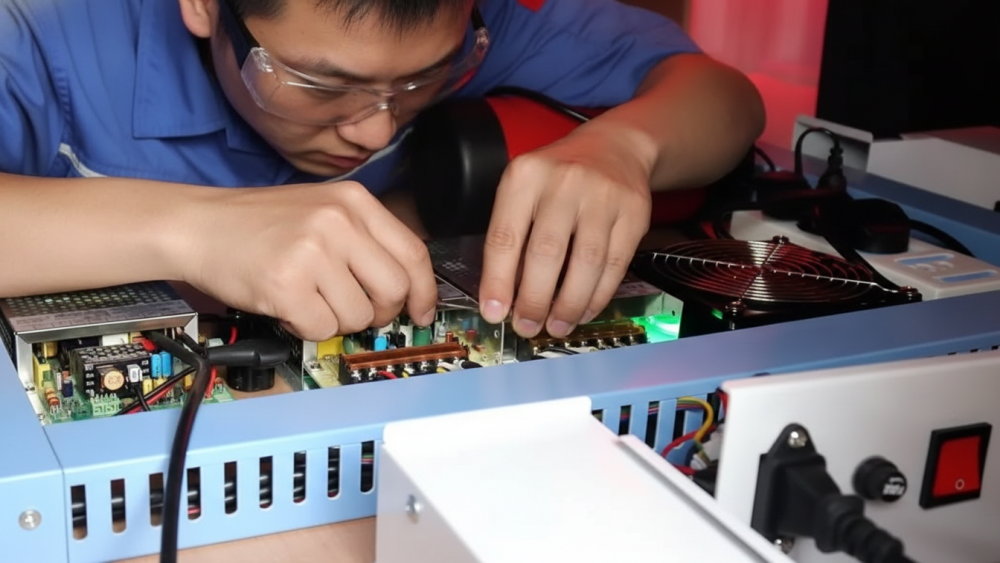

Internal Space Should Be Designed for Repair

A commercial arcade cabinet should leave enough space for coin acceptors, card readers, bill acceptors, speakers, power supplies, PCB boards, I/O boards, wiring harnesses, and future replacement parts.

If the inside space is too tight, a simple repair can become a long job. Repair buyers and distributors should ask whether common service parts can be reached quickly without removing too many components.

Electrical layout should also be treated carefully. IEC 62368-1 applies to safety requirements for electrical and electronic equipment in the field of audio, video, information and communication technology. You can review the IEC page on IEC 62368-1 safety requirements.

For related payment matching details, our arcade card reader and coin acceptor guide explains why payment parts, wiring, I/O boards, and software settings should be checked together.

OEM Appearance Should Fit the Real Cabinet

Custom color, logo, stickers, artwork, boot screen, and packaging are important for branded venues and distributors. But appearance should not be confirmed only from a flat design file.

Artwork needs to match the real cabinet shape. It should avoid screw holes, door gaps, curved edges, control panel openings, and service panels. A good design should still look clean after printing, cutting, and installation.

What Buyers Should Confirm Before Ordering

Before ordering a custom arcade cabinet, buyers should confirm cabinet drawings, dimensions, material, screen position, player layout, payment system position, internal wiring space, ventilation, artwork file, logo position, voltage, packaging method, and test video requirement.

For distributors, one more point is important: whether the same cabinet design can be supplied again later. Stable cabinet design helps reduce spare parts confusion and makes after-sales support easier.

For wider replacement parts planning, our arcade machine parts buying guide gives a practical checklist for commercial game rooms.

Industry Insight

For venue owners, cabinet quality usually shows after the machine starts earning. Weak structure, tight wiring, poor ventilation, uncomfortable player layout, or difficult service access may not look serious at first, but they can increase repair time and reduce machine uptime.

For distributors and repair purchasing teams, a custom arcade cabinet should be judged by repeatability, serviceability, and parts matching, not only by appearance. Experienced buyers ask whether the supplier can confirm cabinet structure, screen matching, payment layout, wiring access, artwork fitting, batch consistency, and pre-shipment testing.

Final Thoughts

Ordering a custom arcade cabinet should be treated as a commercial equipment decision. Buyers should check structure, materials, screen layout, control panel design, payment position, internal space, artwork details, and production records before confirming the order.

A good cabinet is not just an outside case. It is the foundation of machine stability, service efficiency, and long-term business value.
